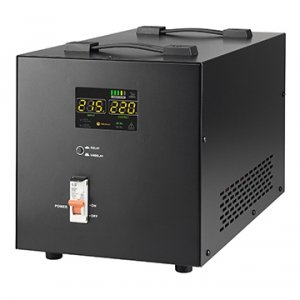

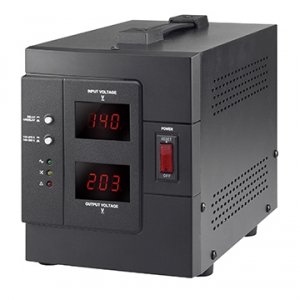

Aegis AVR is designed to automatically maintain a constant voltage level to protect sensitive electronics from brownouts and overvoltage. With microprocessor controller, it allows quick access to detecting and regulating voltage. It also provides selectable range of input voltage to fit all kinds of equipment, like electronic devices or sensitive computers. Equipped with time-delay function, Aegis AVR can protect connected devices from power-back surges or compressor against any consecutive starts.
Overview
Main Features
- Microprocessor control guarantees high reliability
- Selectable input voltage range
- Time delay function eliminates transients that can effect connected equipment
- Provides stable output voltage
- Provides under-voltage, over-voltage, over-heat and over current protection
- Provides surge and spike suppression
Specifications
| MODEL | Aegis 500 | Aegis 1000 | Aegis 1500 | Aegis 2000 | Aegis 3000 | Aegis 5000 | |
| CAPACITY | 500 VA / 400 W | 1000 VA / 800 W | 1500 VA / 1200 W | 2000 VA / 1600 W | 3000 VA / 2400 W | 5000 VA / 4000 W | |
| INPUT | |||||||
| Voltage | 220 VAC or 230 VAC | ||||||
| Voltage Range | 110 VAC-270 VAC or 110 VAC-280 VAC (Wide input window); 140 VAC-260 VAC or 150 VAC-270 VAC (Normal input window) | 140-260 VAC or 140-270 VAC; Option 1: 100-260 VAC or 100-270 VAC; Option 2: 80-260 VAC or 80-270 VAC | |||||
| Frequency Range | 60 Hz/50 Hz | ||||||
| OUTPUT | |||||||
| Voltage | 220 VAC or 230 VAC | ||||||
| Voltage Regulation | -10%~+10% | ||||||
| EFFICIENCY | |||||||
| AVR Mode | 92% | 92-95%* | |||||
| Normal Mode | 95% | 98% | |||||
| PROTECTION | |||||||
| Full Protection | Over-voltage, under-Voltage, over-heat and over current Protection | ||||||
| Delay Time | 3 minutes or 10 Seconds | ||||||
| INDICATORS | |||||||
| LED Indicator | Normal indicator, AVR indicator, delay time setting and Fault indicator | ||||||
| LCD/Meter Display | Input and output voltage | ||||||
| ENVIRONMENT | |||||||
| Operating Temperature | 0~40°C | ||||||
| Operating Humidity | 0~90% relative humidity (non-condensing) | ||||||
| PHYSICAL | |||||||
| Dimension, D X W X H (mm) | 197 x 110 x 124 | 234 x 134 x 181 | 297 x 150 x 199 | 450 x 210 x 237 | |||
| Net Weight (kgs) | 2.4 | 3.91 | 5.4 | 6.55 | 8.56 | 10.96 | |
| Model | Aegis 8000 | Aegis 10000 | |
| CAPACITY | 8000 VA / 6400W | 10000 VA / 8000 W | |
| INPUT | |||
| Voltage | 220 VAC or 230 VAC | ||
| Voltage Range | 140-260 VAC or 140-270 VAC; Option 1: 100-260 VAC or 100-270 VAC; Option 2: 80-260 VAC or 80-270 VAC | ||
| Frequency Range | 60 Hz/50 Hz | ||
| OUTPUT | |||
| Voltage | 220 VAC or 230 VAC | ||
| Voltage Regulation | -10%~+10% | ||
| EFFICIENCY | |||
| AVR Mode | 92-95%* | ||
| Normal Mode | 98% | ||
| PROTECTION | |||
| Full Protection | Over-voltage, under-Voltage, over-heat and over current Protection | ||
| Delay Time | 3 minutes or 10 Seconds | ||
| INDICATORS | |||
| LED Indicator | Normal indicator, AVR indicator, delay time setting and Fault indicator | ||
| LCD/Meter Display | Input and output voltage | ||
| ENVIRONMENT | |||
| Operating Temperature | 0~40°C | ||
| Operating Humidity | 0~90% relative humidity (non-condensing) | ||
| PHYSICAL | |||
| Dimension, D X W X H (mm) | 450 x 210 x 237 | ||
| Net Weight (kgs) | 14.31 | 15.95 | |
