Apex UPS is a “Lite” UPS to protect your power of personal computers. It provides comprehensive protection in a small and economic package. It not only offers greater comprehensive power protection against surges and spikes, but also provides pure voltage with built-in AVR stabilizer. The UPS will continue providing clean and stable power to connected equipment while its embedded microprocessor controller guarantees high reliability, perfect for any home or small office application.
Overview
Main Features
- 400VA/600VA/800VA/1KVA/1.5KVA/2KVA line interactive UPS
- Touch screen LCD to display UPS information circularly (optional)
- Compact size
- Boost and buck AVR for voltage stabilization
- Auto restart while AC is recovering
- Off-mode charging
- Cold start function
- Generator compatible (optional)
- No load shutdown in battery mode for 800VA and below models
- Optional HID Power Device USB port
Specifications
| MODEL | Apex 400 | Apex 600 | Apex 800 | Apex 1K | Apex 1.5K | Apex 2K | |
| CAPACITY | 400 VA / 240 W | 600 VA / 360 W | 800 VA / 480 W | 1000 VA / 600 W | 1500 VA / 900 W | 2000 VA / 1200 W | |
| INPUT | |||||||
| Voltage | 110/120 VAC or 220/230/240 VAC | ||||||
| Voltage Range | 81-145 VAC / 162-290 VAC | ||||||
| Frequency Range | 60/50 Hz (auto sensing) | ||||||
| OUTPUT | |||||||
| Output Voltage | 110/120 VAC or 220/230/240 VAC | ||||||
| AC Voltage Regulation (Batt. Mode) | ±10% | ||||||
| Frequency Range (Batt. Mode) | 60 Hz or 50 Hz ±1 Hz | ||||||
| Transfer Time | Typical 2-6 ms | ||||||
| Waveform (Batt. Mode) | Simulated Sinewave | ||||||
| BATTERY | |||||||
| Battery Type & Number | 12 V/4.5 Ah x 1 | 12 V/7 Ah x 1 | 12 V/9 Ah x 1 | 12 V/7 Ah x 2 | 12 V/9 Ah x 2 | ||
| Typical Charging Time | 4-6 hours recover to 90% capacity | ||||||
| PROTECTION | |||||||
| Full Protection | Overload, discharge, and overcharge protection | ||||||
| INDICATORS | |||||||
| LED Display | AC Mode | Green lighting | |||||
| LED Display | Battery Mode | Green flashing | Yellow flashing | ||||
| LED Display | Fault | N/A | Red lighting | ||||
| LCD Model | Input voltage, output voltage, battery capacity, load level and UPS status | ||||||
| ALARM | |||||||
| Battery Mode | Sounding every 10 seconds | ||||||
| Low Battery | Sounding every second | ||||||
| Overload | Sounding every 0.5 second | ||||||
| Fault | Continuously sounding | ||||||
| PHYSICAL | |||||||

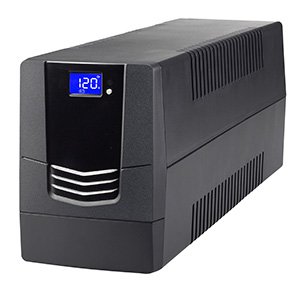

| LCD Model | Dimension, D X W X H (mm) | 300 x 101 x 142 | 320 x 130 x 182 | ||||
| LCD Model | Net Weight (kgs) | 3.7 | 4.4 | 5 | 7.8 | 10.4 | 10.6 |

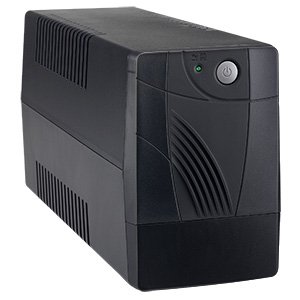

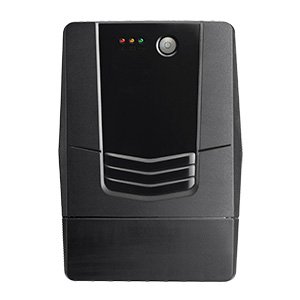

| LED Model | Dimension, D X W X H (mm) | 279 x 101 x 142 | 320 x 130 x 182 | ||||
| LED Model | Net Weight (kgs) | 3.55 | 4.2 | 4.9 | 8.2 | 10.4 | 11 |
| OPERATING ENVIRONMENT | |||||||
| Operating Humidity | 0-90 % RH @ 0- 40°C (non-condensing) | ||||||
| Noise Level | Less than 40dB | ||||||
