Ara is an exclusively designed gaming UPS to protect online match for users from unexpected power failure.
Equipped with RGB lighting bar, Ara can perfectly match with gaming PC and users can customize the color on their own.
Gamers can monitor CPU temperature, speed and load level all the time from LCD panel. LCD panel is removable from base to place close to gamers.

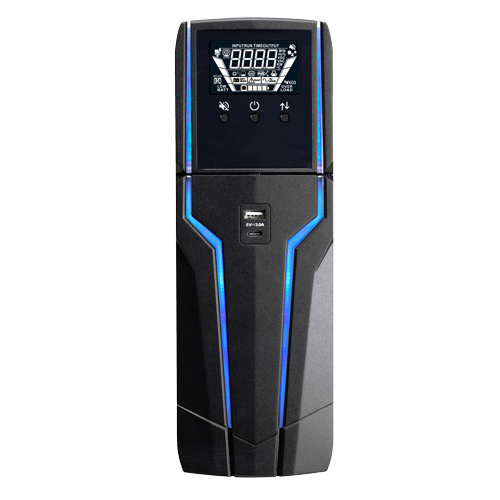

Ara 1K/1.5K
Gaming UPS
Overview
Main Features
- Provides real-time CPU temperature, CPU speed and CPU load level
- Customized RGB lighting for UPS status
- Docking LCD design with Bluetooth communication
- Remote LCD panel is built-in 900mAH battery for 12-hour operating time
- Pure sine wave output
- Built-in AVR for voltage stabilization
- Built-in two USB charger ports for mobile devices
- Provides battery backup and surge protected outputs
- Easy replaceable battery design
- Built-in USB com. port and RJ-45 network surge protection
- Optional coax surge protection for TV antenna
Specifications
| MODEL | Ara 1000 | Ara 1500 | |
| CAPACITY | 1000 VA / 600 W | 1500 VA / 900 W | |
| INPUT | |||
| Voltage | 110/120 VAC or 220/230/240 VAC | ||
| Voltage Range | 81～132VAC/86-142VAC or 170~280VAC | ||
| OUTPUT | |||
| Voltage | 110/120 VAC or 220/230/240 VAC | ||
| AC Voltage Regulation (Batt. Mode) | ± 10% | ||
| Frequency Range (Batt. Mode) | 50 Hz/ 60 Hz ± 1 Hz | ||
| Transfer Time | 6ms typical, 10ms max | ||
| Waveform (Batt. Mode) | Pure Sine Wave | ||
| BATTERY | |||
| Battery Type & Number | 12 V/9 Ah x 1 | 12 V/9 Ah x 2 | |
| Typical Charging Time | 6-8 hours recover to 90% capacity | ||
| INDICATORS | |||
| LCD Display | Input/output voltage, input/output frequency, laod in VA/Watts, battery capacity, estimated remaining runtime, site wiring fault indications | ||
| ENVIRONMENT | |||
| Operating Humidity | 0~90% RH @ 0- 40°C (non-condensing) | ||
| Noise Level | Less than 40dB | Less than 45dB | |
| PHYSICAL | |||
| Dimension, D X W X H (mm) | 308 x 99 x 280 | 430 x 99 x 280 | |
| Net Weight (kgs) | 9.2 | 13.8 | |
| MANAGEMENT | |||
| Compliance & Standards | 110/120VAC model: cTUVus (standard:UL 1778), FCC Part 15 Class B, ENERGY STAR (USA) 220/230/240VAC model: CE , EN 62040-1:2008/A1:2013, IEC 62040-1:2008/A1:2013 | Supports Windows® 2000/2003/XP/Vista/2008/7, Linux, Unix, and MAC | |
| USB Port | 110/120VAC model: cTUVus (standard:UL 1778), FCC Part 15 Class B, ENERGY STAR (USA) 220/230/240VAC model: CE , EN 62040-1:2008/A1:2013, IEC 62040-1:2008/A1:2013 |
||
