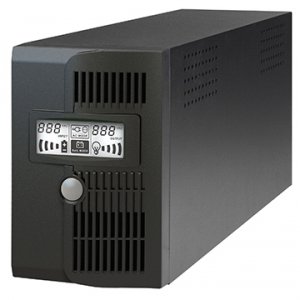

Atom is a compact metal inverter UPS which combines both benefits of UPS and inverter for long-time operation. With built-in voltage stabilizer, it can accept wide input voltage range (100VAC ~ 290VAC) and convert to stable and pure power source to the connected devices. It is perfect choice for home owners or small office users in the unstable power area.
Overview
Main Features
- 600VA simuleted sine wave inverter
- Built-in transformer
- Wide input voltage range
- 10 A standard charging current
- Auto restart while AC is recovering
- Overload, overcharge, and short circuit protection
- Cold start function
- Offering LED or LCD front panels for selection
Specifications
| MODEL | Atom 600 | |
| CAPACITY | 600 VA / 420 W | |
| INPUT | ||
| Voltage | 230 VAC | |
| Acceptable Voltage Range | 100-290 VAC | |
| Frequency Range | 50/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 10% | |
| Transfer Time | 20 ms (typical) | |
| Waveform (Batt. Mode) | Simulated Sine Wave | |
| BATTERY | ||
| Battery Voltage | 12 VDC | |
| Floating Charge Voltage | 13.7 VDC ± 2% | |
| Overcharge Protection | 14.5 VDC ± 2% | |
| Maximum Charging Current | 10 A | |
| Shutdown Voltage | 9.9 VDC ± 2% | |
| Low Battery Alarm Voltage @ 50% Load | 10.6 VDC ± 2% | |
| PHYSICAL | ||
| Dimension, D X W X H (mm) | 359 x 97 x 147 | |
| Net Weight (kgs) | 5.1 | |
| OPERATING ENVIRONMENT | ||
| Operating Humidity | 0~90% relative humidity (non-condensing) | |
| Operating Temperature | 0℃ to 50℃ | |
| Storage Temperature | -15℃ to 50℃ | |
