The MAX III includes 12 important LCD settings with indicators on the front panel that lights up to display the current parameter settings. It is also designed with sliding-door on LCD control panel to facilitate installation. Simply sliding the control panel up and locking it with holder, installer can easily access cable wirings. Dual inputs and dual outputs feature allows smart energy management based on applications. This series is designed with Grid-support function which allows large output power without changing utility infrastructure. Besides, built-in CT sensor meets self-consumption application.

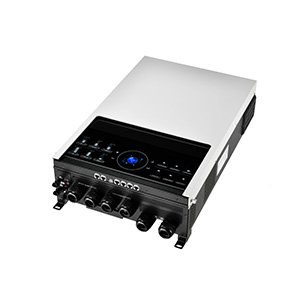

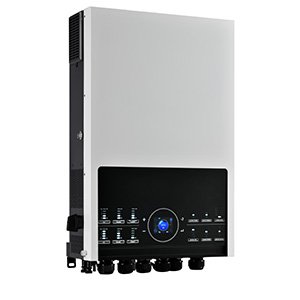

Axpert MAX III 8KW/11KW/12KW
User-friendly LCD setting and intuitive LED design
Overview
Main Features
- User-friendly LCD setting and intuitive LED design

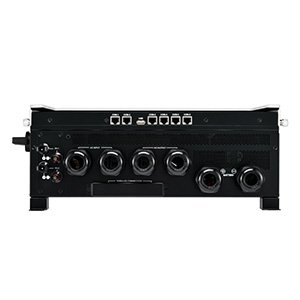

- Easy access cable design with sliding door
- Dual inputs and Dual outputs for smart energy management
- Grid support and built-in CT sensor
- Built-in DC, AC breaker, PV DC switch
- New wall-mount bracket design
- Upgrade maximum PV power to 12000W
- Parallel operation with 6 units
Specifications
| MODEL | Axpert MAX III 8KW | Axpert MAX III 11KW | Axpert MAX III 12KW | |
| PARALLEL CAPABILITY | Yes, 6 units | |||
| RATED INVERTER POWER | 8000VA/8000W | 11000 VA / 11000 W | 12000 VA / 12000 W | |
| INPUT | ||||
| Voltage | 230 VAC | |||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers),90-280 VAC (For Home Appliances) | |||
| Frequency Range | 90-280 VAC (For Home Appliances) | |||
| OUTPUT | ||||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |||
| Surge Power | 16000 VA | 22000 VA | 24000 VA | |
| Efficiency (Peak) | 93% | |||
| Transfer Time | 15 ms (For Personal Computers), 20 ms (For Home Appliances) | |||
| Waveform | Pure Sine Wave | |||
| DC Voltage | 12 VDC ± 5%, 100W | |||
| No Load Power Consumption <75W | <75W | |||
| BATTERY | ||||
| Battery Voltage | 48 VDC | |||
| Floating Charge Voltage | 54 VDC | |||
| Overcharge Protection | 66 VDC | |||
| SOLAR CHARGER & AC CHARGER | ||||
| Solar Charger type | MPPT | |||
| Maximum PV Array Open Circuit Voltage | 500 VDC | |||
| Maximum PV Array Power | 12000W (6000W x 2) | 18000W (Max. 12000W per tracker) | ||
| Maximum Solar Charge Current | 150A | 200A | ||
| Maximum AC Charge Current | 120A | 150A | 200A | |
| Maximum Charge Current | 150A | 200A | ||
| Maximum PV Input Current | 27A x 2 (MAX. 40A) | 40A/27A (MAX 60A) | ||
| MPP Range @ Operating Voltage | 90 ~ 450 VDC | |||
| PHYSICAL | ||||
| Dimension, D X W X H (mm) | 173.2 x 432.4 x 651.5 | |||
| Net Weight (kgs) | 20 | 25 | 28.5 | |
| Communication Port | USB/RS232/RS485/Wifi/Dry-contact | |||
| OPERATING ENVIRONMENT | ||||
| Operating Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
| Operating Temperature | -10°C to 50°C | |||
| Storage Temperature | -15°C to 60°C | |||
| STANDARD | ||||
| Compliance Safety | IEC 62109, IEC 61683, EN/IEC 61000-6-2, 61000-6-4, 61000-3-11, 61000-3-12, | |||
