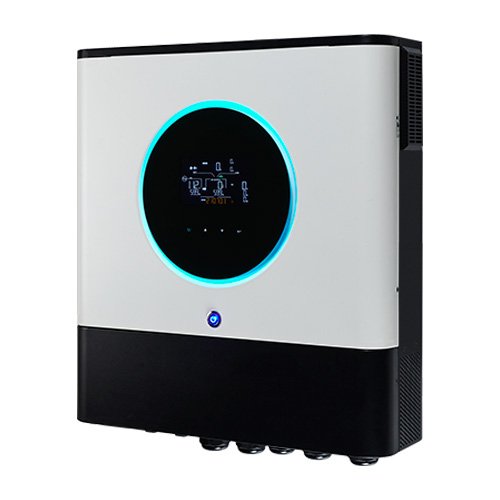

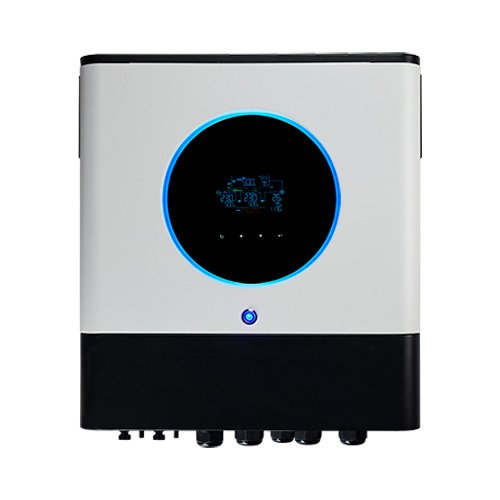

Axpert MAX TWIN is a high-performance off-grid inverter with 120A /150A MPPT solar charger and customizable status LED bar with RGB lights. Axpert MAX TWIN is occupied with two outputs. The second output can be scheduled on/off, setting cut-off voltage or SOC and discharging time via LCD setting.
Axpert MAX TWIN 8KW/11KW/12KW
Dual outputs for smart load management
Overview
Main Features
- •Status indication with RGB lights
- •Dual outputs and dual inputs for smart energy management
- •Upgrade maximum PV current to 60A for 12K model
- •Built-in WiFi with an APP for mobile monitoring and OTA firmware
- •Supports USB On-the-Go function
- •Built-in BMS communication port
- •Built-in meter calibration for optimized system operation
- • Battery-independent design
- •Built-in anti-dust kit
- •Optional DC output for DC fan, LED bulb, router, and so on
- •Parallel operation with 6 units
Specifications
| MODEL | Axpert MAX TWIN 12K | Axpert MAX TWIN 8K | Axpert MAX E TWIN 11K | |
| PARALLEL CAPABILITY | Yes, 6 units | |||
| RATED INVERTER POWER 8000VA/8000W 11000VA/11000W | 12000VA/12000W | 8000VA/8000W | 11000 VA / 11000 W | |
| INPUT | ||||
| Voltage | 230 VAC | |||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers),90-280 VAC (For Home Appliances) | |||
| Frequency Range | 90-280 VAC (For Home Appliances) | |||
| OUTPUT | ||||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 10% | |||
| Surge Power | 24000 VA | 16000 VA | 22000 VA | |
| Efficiency (Peak) | 93% | |||
| Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) | |||
| Waveform | Pure Sine Wave | |||
| DC Voltage | N/A | 12 VDC ± 5%, 100W | N/A | |
| BATTERY | ||||
| Battery Voltage | 48 VDC | |||
| Floating Charge Voltage | 54 VDC | |||
| Overcharge Protection | 63 VDC | 66 VDC | 63 VDC | |
| SOLAR CHARGER & AC CHARGER | ||||
| Solar Charger type | MPPT | |||
| Maximum PV Array Open Circuit Voltage | 500 VDC | |||
| Maximum PV Array Power | 18000W (Max. 12000W per tracker) | 11000W (5500W x 2) | 13000W (6500W x 2) | |
| MPPT Range @ Operating Voltage | 90 ~ 450 VDC | |||
| Maximum AC Charge Current | 200A | 120A | 150A | |
| Maxmum Solar Charge Current | 200A | 120A | 150A | |
| Maximum Charge Current | 200A | 120A | 150A | |
| Maximum PV Input Current | 40A/27A (MAX 60A) | 27A x 2(MAX 40A) | ||
| PHYSICAL | ||||
| Dimension, D X W X H (mm) | 147.4 x 432.5 x 553.6 | |||
| Net Weight (kgs) | 20 | 18.4 | ||
| Communication Port | USB/RS232/RS485/Wifi/Dry-contact | |||
| OPERATING ENVIRONMENT | ||||
| Operating Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
| Operating Temperature | -10°C to 50°C | |||
| Storage Temperature | -15°C to 60°C | |||
| STANDARD | ||||
| Compliance Safety | IEC 62109, IEC 61683, EN/IEC 61000-6-2, 61000-6-4, 61000-3-11, 61000-3-12 | |||
