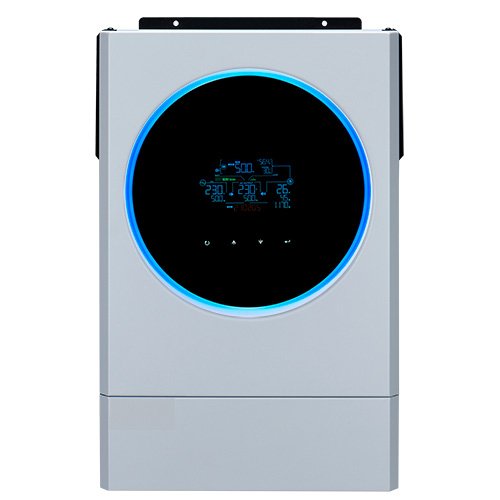

Axpert MKS 4 TWIN

Dual outputs for smart load management

Categories: Off-Grid Inverter, PV Inverter

Axpert MKS 4 TWIN is occupied with two outputs. The second output can be scheduled on/off, setting cut-off voltage or SOC and discharging time via LCD setting. Axpert MKS 4 TWIN is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank.

Overview

Main Features

Maximum PV input current 27
Dual outputs for smart load management
Customizable status LED ring with RGB lights
Touchable button with large 4.3 colored LCD
Wide DC input range
Built-in WiFi for mobile monitoring (App is available)
Reserved communication port for BMS
Battery independent function
Parallel operation with up to 9 units

Specifications

MODEL		Axpert MKS 4 TWIN 6K
Rated Power		6000VA/6000W
Parallel Capability		Yes, up to 9 units
INPUT
Voltage		230 VAC
Selectable Voltage Range		170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range		50/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)		230 VAC ± 5%
Efficiency (Peak)		93%
Transfer Time		10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform		Pure Sine Wave
Overload capacity		5s@150% load; 10s@110%~150% load; 100ms@≥200% load
BATTERY
Battery Voltage		48 VDC
Floating Charge Voltage		54 VDC
Overcharge Protection		66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type		MPPT
Maximum PV Array Open Circuit Voltage		500 VDC
Maximum PV Array Power		6000 W
MPPT Range @ Operating Voltage		120 VDC~500 VDC
Maximum Solar Charge Current		120A
Maximum AC Charge Current		120A
Maximum PV Input Current		27A
PHYSICAL
Dimension, D X W X H (mm)		140 x 295 x 468
Net Weight (kgs)		12
Communication		USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
Operating Humidity		5% to 95% Relative Humidity(Non-condensing)
Operating Temperature		-10℃ to 50℃
Storage Temperature		-15℃ to 60℃
