Axpert VM III TWIN is occupied with two outputs. The second output can be scheduled on/off, setting cut-off voltage or SOC and discharging time via LCD setting. It facilitates users smart load control. Designed with 27A PV input current, Axpert VM III TWIN is compatible with the market trend of increased Imp in solar panels. It also allows a wide PV input voltage range from 60VDC to 450VDC. These features allow fewer solar panels required in the system and save space.

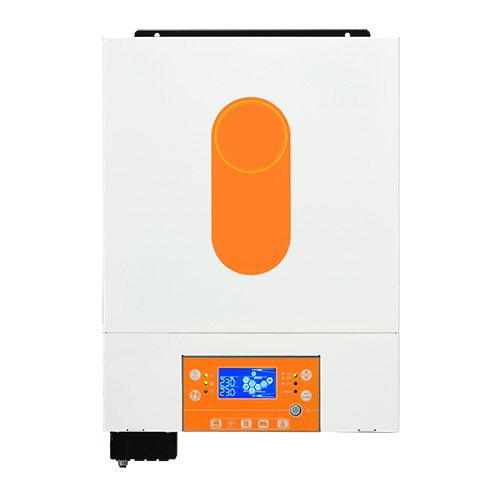

Axpert VM III TWIN 4KW/6KW
Dual outputs for smart load management
Overview
Main Features
- • Detachable LCD control module with various communications
- • Maximum PV input current 27A
- • Dual output for smart load management
- • Built-in WiFi for mobile monitoring (App is available)
- • Supports USB On-the-Go function
- • Reserved communication port (RS485, CAN-BUS or RS232) for BMS
- • Battery independent design
- • Battery equalization extends lifecycle
- • User-friendly LCD operation
- • Replaceable fan design for ease of maintenance
Specifications
| MODEL | Axpert VM III TWIN 4K | Axpert VM III TWIN 6K | |
| Rated Power | 4000VA/4000W | 6000VA/6000W | |
| INPUT | |||
| Voltage | 230 VAC | ||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) | ||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 10% | ||
| Surge Power | 8000VA | 12000VA | |
| Efficiency (Peak) | 90%~93% | ||
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | ||
| Waveform | Pure Sine Wave | ||
| BATTERY | |||
| Battery Voltage | 24 VDC | 48 VDC | |
| Floating Charge Voltage | 27 VDC | 54 VDC | |
| Overcharge Protection | 33 VDC | 63 VDC | |
| SOLAR CHARGER & AC CHARGER | |||
| Solar Charger Type | MPPT | ||
| Maximum PV Array Open Circuit Voltage | 500 VDC | ||
| Maximum PV Array Power | 5000W | 6000W | |
| MPPT Range @ Operating Voltage | 60-450 VDC | ||
| Maximum Solar Charge Current | 120A | ||
| Maximum AC Charge Current | 100A | ||
| Maximum Charging Current | 120A | ||
| PHYSICAL | |||
| Dimension, D X W X H (mm) | 115 x 300 x 435 | ||
| Net Weight (kgs) | 9 | 10 | |
| Communication Port | USB, RS-232,RS-485,WiFi,Dry-contact | ||
| OPERATING ENVIRONMENT | |||
| Operating Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||
| Operating Temperature | -10℃ to 50℃ | ||
| Storage Temperature | -15℃ to 60℃ | ||
