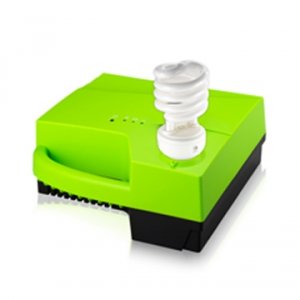

CFL UPS is specially designed for lighting solution. The on-box lamp holder can be used for directly plugging in an energy saving bulb with a full range of 360-degree lighting. Also, there are three sockets which can be used as extension for connecting up to 3 CFLs lighting simultaneously. It is a perfect choice for emergency lighting, house lighting, camping, Hawker/Street Vendor or street lighting in remote villages.
Overview
Main Features
- 40W DC UPS
- Equipped with one lamp holder for energy saving bulb
- 3 sets of DC-powered outlets for energy saving bulbs
- Off-mode charging
- Overload protection in battery mode and short circuit protection
- Three indicators available
- 3-step charging design to extend battery life
Specifications
| MODEL | CFL UPS | |
| CAPACITY | 50 VA/40 W | |
| INPUT | ||
| Voltage | 230 VAC | |
| Voltage Range | 100 VAC-300 VAC | |
| OUTPUT | ||
| Output Voltage (AC Mode) | 100 VDC-300 VDC | |
| Waveform | DC Output | |
| Output Voltage (Batt. Mode) | 160-230 VDC ± 10% | |
| BATTERY & CHARGER | ||
| Battery Type & Number | 12V 7Ah x 1 | |
| Typical Charging Time | 6 hours recover to 90% capacity | |
| Floating Charge Voltage | 13.7 VDC ± 1.5% | |
| Charging Current | 1 A | |
| Bulk charging voltage | 14.5 VDC ± 1.5% | |
| Battery Voltage | 12 VDC | |
| INDICATORS | ||
| Low Battery (Batt. Mode) | Yellow flashing every second | |
| Normal battery voltage at Battery Mode | Yellow lighting | |
| Output short-circuited | Red lighting | |
| Overcharge | Red LED staying on for one second and off for 4 seconds | |
| Overload | Red flashing rapidly every 0.5 second | |
| Charging battery at Line Mode | Green flashing every 2 seconds | |
| Full battery at Line Mode | Green lighting | |
| PHYSICAL | ||
| Dimension, D X W X H (mm) | 209 x 87 x 200 | |
| Net Weight (kgs) | 2.7 | |
| OPERATING ENVIRONMENT | ||
| Operating Humidity | 0~90% RH @ 0- 40°C (non-condensing) | |
| Noise Level | Less than 40dB | |
