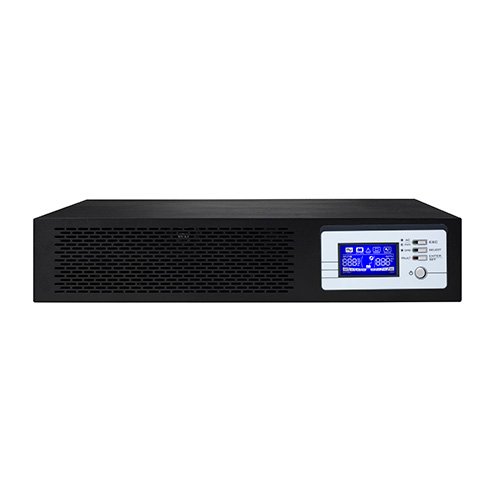

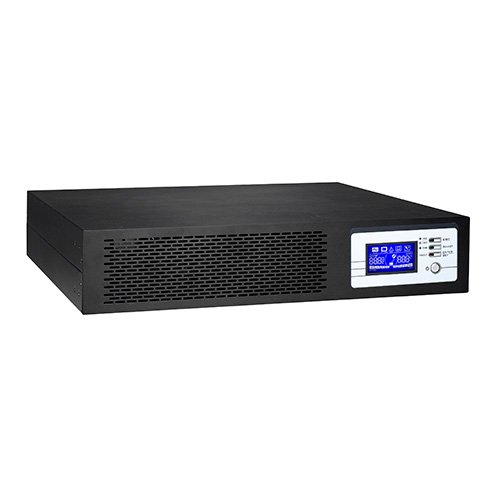

A highly attractive EPS(Emergency Power System) targets commercial, banking and industrial applications, from ATM, CCTV, elevator to big cooling systems. Each 5KW module is built in 60A big charger. Scalable to 30KW with 6 modules, this whole system is able to reach 360A per system and shorten the charging time for over 24-hour backup time. EPS is suitable for either single phase or three-phase applications to meet diverse demands
Overview
Main Features
- Pure sine wave inverter
- Built-in AC charger up to 60A
- Selectable charging current based on applications
- Configurable parameter setting via LCD display
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Selectable input voltage range for home appliances and personal computers
- Cold start function
- Parallel operation with up to 9 units
- Optional MPPT or PWM Solar Charger
Specifications
| MODEL | EPS 5KW | |
| Rated Power | 5000 VA / 5000 W | |
| INPUT | ||
| Voltage | 220/230/240 VAC | |
| Voltage Range | 170-255 VAC | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| AC CHARGER | ||
| Charging modes | 3 steps for CC, CF and Floating | |
| Maximum AC Charge Current (Adjustable) | 2.5~60 A | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 220/230/240 VAC ± 5% | |
| Surge Power for 5 seconds | 10000 VA | |
| Efficiency (Peak) | 93% | |
| Transfer Time | <10 ms | |
| Waveform | Pure Sine Wave | |
| BATTERY | ||
| Battery Voltage | 48 VDC | |
| Floating Charge Voltage | 53.6 VDC | |
| Overcharge Protection | 60 VDC | |
| CC/CV Charge Voltage | 56.4 VDC | |
| SOLAR CHARGER (option) | ||
| Maximum PV Array Open Circuit Voltage | 145 VDC | |
| Maximum PV Array Power | 4000W | |
| Maximum Solar Charge Current | 80 A | |
| MPPT Range @ Operating Voltage | 60 VDC~115 VDC | |
| PARALLEL | ||
| Maximum Parallel units | Up to 9 units | |
| Parallel Type | Single Phase or Three Phase | |
| Transfer Time in Parallel Mode | <40ms | |
| PHYSICAL | ||
| Dimension, D X W X H (mm) | 400 x 438 x 88 (2U) | |
| Net Weight (kgs) | 9.1 | |
| INTERFACE | ||
| Communication Port | Modbus RS-485 | |
| Dry Contacts | Deliver signal to external device such as generator | |
| OPERATING ENVIRONMENT | ||
| Operating Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0℃ to 40℃ | |
| Storage Temperature | -15℃ to 60℃ | |
