Galleon II 1K-3K provides better output power factor up to 0.9 with higher performance and efficiency for critical applications. It’s same as Galleon series with programmable power management outlets which can extend available battery time to critical devices by shutting down unnecessary devices. This Galleon II 1K-3K series is also suitable for laser printer and ultrasound system load.

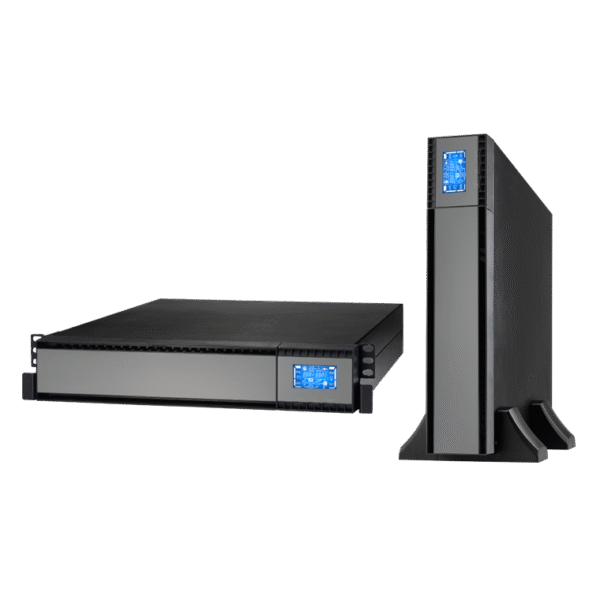

Galleon II Rackmount/Rack Tower
2U 1KVA-3KVA Online UPS
Overview
Main Features
- True double-conversion
- Output power factor 0.9
- ECO and advanced ECO mode for energy saving
- Output voltage regulation < 1%
- Higher output crest radio 3:1
- 50Hz/60Hz frequency converter mode
- Programmable power management outlets
- Emergency power off function (EPO)
- Hot swappable battery design
Specifications
| MODEL | Galleon II RM 1K | Galleon II RM 1.5K | Galleon II RM 2K | Galleon II RM 3K | |
| CAPACITY | 1000 VA / 900 W | 1500 VA / 1350 W | 2000 VA / 1800 W | 3000 VA / 2700 W | |
| PHASE | Single phase with ground | ||||
| INPUT | |||||
| Voltage Range | 55-150 VAC ± 5 % or 110-300 VAC ± 5 % at 50% load; 80-150 VAC ± 5 % or 160-300 VAC ± 5 % at 100% load | ||||
| Nominal Voltage | 100*/110*/115*/120/127 VAC or 200/208/220/230/240 VAC | ||||
| Frequency Range | 40Hz~70Hz | ||||
| Power Factor | ≧ 0.99 @ Nominal Voltage (100% load) | ||||
| Harmonic Distortion (THDi) | ≦ 5% @ nominal input voltage | ||||
| OUTPUT | |||||
| Output Voltage | 100*/110*/115*/120/127 VAC or 200/208/220/230/240 VAC | ||||
| AC Voltage Regulation (Batt. Mode) | ± 1% | ||||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | ||||
| Transfer Time | AC Mode to Battery Mode | Zero | |||
| Transfer Time | Inverter to Bypass | 4 ms (Typical) | |||
| Waveform (Batt. Mode) | Pure Sine Wave | ||||
| Current Crest Ratio | 3:1 (max.) | ||||
| Harmonic Distortion | ≦ 2% THD (Linear Load); ≦ 4% THD (Non-linear load) | ||||
| Frequency Range (Synchronized Range) | 57~63 Hz or 47~53 Hz | ||||
| EFFICIENCY | |||||
| Battery Mode | 88%,89% | 89% | 88%, 89% | 90% | |
| ECO Mode | 97% | ||||
| AC Mode | 90% | 91% | |||
| BATTERY | |||||
| Long-run Model | Model-Battery Type | Depending on the capacity of external batteries | |||
| Long-run Model | Model-Charging Current (max.) | 1A / 2A / 4A / 8A (Selectable via LCD Setting) | |||
| Long-run Model | Model-Charging Voltage | 27.4 VDC ± 1%, 41.1 VDC ± 1% | 41.1 VDC ± 1% | 54.8 VDC ± 1%, 82.1 VDC ± 1% | 82.1 VDC ± 1% |
| Long-run Model | Model-Numbers | 2,3 | 3 | 4.6 | 6 |
| Standard Model | Battery Type | 12 V / 9 AH, 12 V / 7 AH | 12 V / 9 AH | 12 V / 9 AH,12 V / 7 AH | 12 V / 9 AH |
| Standard Model | Charging Current (max.) | 1.5 A | |||
| Standard Model | Charging Voltage | 27.4 VDC ± 1% | 41.1 VDC ± 1% | 54.8 VDC ± 1%, 82.1 VDC ± 1% | 82.1 VDC ± 1% |
| Standard Model | Numbers | 2,3 | 3 | 4, 6 | 6 |
| Standard Model | Typical Recharge Time | 4 hours recover to 90% capacity | |||
| INDICATORS | |||||
| LCD Display | UPS Status, Load level, Battery leve, Battery mode, Input/Output voltage, Discharge timer, and Fault indicators | ||||
| ALARM | |||||
| Battery Mode | Sounding every 5 seconds | ||||
| Low Battery | Sounding every 2 seconds | ||||
| Overload | Sounding every second | ||||
| Fault | Continuously sounding | ||||
| ENVIRONMENT | |||||
| Operating Humidity | 20~90% RH @ 0- 40°C (non-condensing) | ||||
| Noise Level | Less than 50dB @ 1 Meter | ||||
| PHYSICAL | |||||
| Standard Model | Dimension, D X W X H (mm) | 410 x 438 x 88 | 510 x 438 x 88, 630 x 438 x 88 | 630 x 438 x 88 | |
| Standard Model | Net Weight (kgs) | 11.6, 14.2 | 14.5 | 19.5, 26.9 | 27.4 |
| Long-run Model | Dimension, D X W X H (mm) | 410 x 438 x 88 | 510 x 438 x 88 | ||
| Long-run Model | Net Weight (kgs) | 6.4 | 6.5 | 10.5 | |
| MANAGEMENT | |||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||
| Smart RS-232 / USB | Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC | ||||
