The Galleon III employs digital control technology, featuring fast self-diagnosis and fault-handling capabilities. Its highly integrated circuits and optimized design enhance anti-interference capabilities, ensuring stable performance. With a full-load efficiency of up to 95%, it significantly reduces energy consumption and operating costs. The input power factor exceeds 0.99, and current harmonics are below 4%, effectively preventing additional energy loss and eliminating grid pollution. Its ultra-wide voltage input range adapts to various operating conditions, easily handling harsh power environments and reducing the frequency of switching to battery power. Additionally, it supports generator input with an isolation design, providing a clean, safe, and stable power supply for loads.

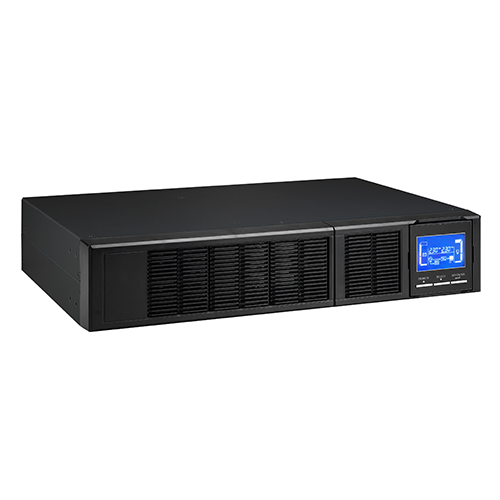

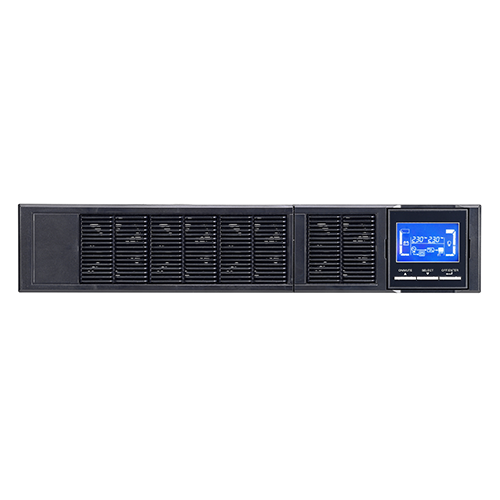

Galleon III RT 6KVA/10KVA
Outstanding Energy Efficiency Rack-Mount Online UPS
Overview
Main Features
- True double-conversion
- DSP technology guarantees high performance
- Output power factor 1
- Active input power factor correction 0.99
- Wide input voltage range (110-300 VAC)
- High efficiency up to 95%
- 50Hz/60Hz frequency converter mode
- Emergency power off function (EPO)
- ECO mode for energy saving
- Generator compatible
- SNMP/USB/RS-232 communications
- Adjustable battery numbers
- Built in Back-feed relay
Specifications
| MODEL | Galleon III RT 6K(L) | Galleon III RT 10K (L) | |
| CAPACITY | 6000 VA / 6000 W | 10000 VA / 10000 W | |
| PHASE | 1 phase in / 1 phase out | ||
| INPUT | |||
| Voltage Range | 110~300VAC ± 3 % at 60% load 176~300VAC ± 3 % at 100% load |
||
| Nominal Voltage | 208/220/230/240 VAC | ||
| Frequency Range | 46~54 Hz or 56~64 ; Hz40 ~ 70 Hz (In generator mode) | 46~54 Hz or 56~64 Hz 40 ~ 70 Hz (In generator mode) |
|
| Power Factor | ≧ 0.99 @ full load | ||
| THDi | <4% @100% Load | ||
| OUTPUT | |||
| Output Voltage | 208*/220/230/240 VAC | ||
| AC Voltage Regulation (Batt. Mode) | ± 1% | ||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | ||
| Transfer Time | AC Mode to Batt. Mode | Zero | |
| Transfer Time | Inverter to Bypass | zero | |
| Waveform (Batt. Mode) | Pure Sinewave | ||
| Current Crest Ratio | 3:1 (max.) | ||
| Harmonic Distortion | ≦1 % THD (Linear Load), ≦ 4 % THD (Non-linear Load) | ||
| Frequency Range (Synchronized Range) | 46~54 Hz or 56~64 Hz | ||
| Overload | AC Mode | 100-110% for 60 min, 110-125% for 10 min, 125%~150% 1min, >150% transfer to bypass | |
| Overload | Battery Mode | 100-110% for 3 min, 110-130% for 30s ,>130% immediately | |
| EFFICIENCY | |||
| Battery Mode | 0.92 | ||
| AC Mode | 0.95 | ||
| BATTERY | |||
| Battery Type | Lead acid battery | ||
| Charging Voltage | (13.65VDC x battery number) ± 1% | ||
| Numbers | 16-20** | ||
| Charging Current (max.) | 2A (Default) ,1A/2A/4A/6A/8A adjustable | ||
| ENVIRONMENT | |||
| Noise Level | Less than 55dBA @ 1 Meter | Less than 58dB @ 1 Meter | |
| Operation Humidity | 20-90 % RH @ 0- 40°C (non-condensing) | ||
| PHYSICAL | |||
| Net Weight (kgs) | 11 | 12.1 | |
| Dimensions, D x W x H(mm) | 509 x 438 x 88 (2U) | ||
| MANAGEMENT | |||
| Optional SNMP | Power management from SNMP manager and web browser | ||
| Smart RS-232 / USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux and MAC | ||
