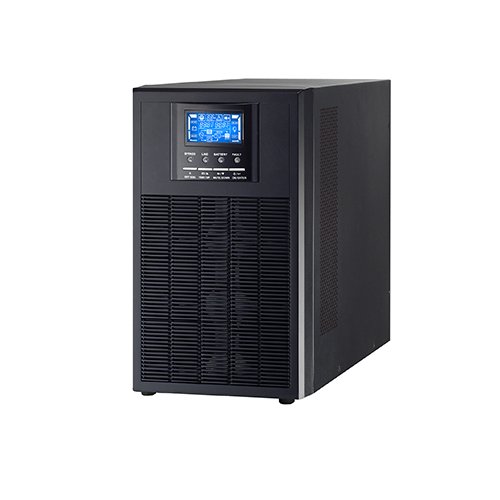

Featuring true double-conversion design, the Galleon One 5KL-48V sports a powerful 60A AC charger and an optional 80A MPPT Solar Charger for deployment flexibility. The unique 48V battery system also brings your energy storage configuration to a different level. This unit is also parallel up to 9 units for single phase or 3-Phase operation. It can accept wide input voltage for harsh environment. With the optional solar charger, the Galleon One 5KW-48 stands out amongst the competitions to become the ultimate protection solutions for your mission critical systems. Please check Solar UPS webpage for detailed specification.
Overview
Main Features
- True double-conversion
- Pure sinewave output
- Output Power Factor 1.0
- Configurable charging current via LCD setting
- Compatible with Generator
- Cold Start capability
- Overload and short circuit protection
- Optional parallel operation up to 9 units for Single Phase and Three Phase application
- Common 48Vdc battery pack for the parallel system
- Very powerful AC charger at 60A
- Full Bridge inverter design to support half-wave load and unbalanced load
Specifications
| MODEL | Galleon One 3KL | Galleon One 5KL | |
| CAPACITY | 3000VA / 3000W | 5000VA / 5000W | |
| INPUT | |||
| Voltage | 230VAC | ||
| Voltage Range | 110-280 VAC | ||
| Frequency Range | 46~54 Hz or 56~64 Hz | ||
| Power Factor | ≧ 0.98 @ Nominal Voltage (100% Load) | ||
| THDi | ≦ 10% | ||
| OUTPUT | |||
| Output Voltage | 230VAC± 5% | ||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz | ||
| Transfer Time | AC Mode to Batt. Mode | Zero | |
| Transfer Time | Inverter to Bypass | 4 ms (Typical) | |
| Waveform | Pure Sinewave | ||
| Harmonic Distortion | ≦ 3% THD (Linear Load) ; ≦ 5% THD (Non-linear Load) | ||
| Frequency Range (Synchronized Range) | 46~54 Hz or 56~64 Hz | ||
| EFFICIENCY | |||
| Battery Mode | 93% | ||
| ECO Mode | 98% | ||
| Line Mode | 93% | ||
| BATTERY | |||
| Battery Voltage | 48 VDC | ||
| Floating Charge Voltage | 54 VDC | ||
| Overcharge Protection | 66 VDC | ||
| Charging Current (max.) | 60 A | ||
| INDICATORS | |||
| LCD Panel | Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicator Via LCD | ||
| PHYSICAL | |||
| Dimension, D x W x H (mm) | 450 x 190 x 336 | ||
| Net Weight (kgs) | 14 | 15 | |
| Communication Interface | RS232 & USB | ||
| OPERATING ENVIRONMENT | |||
| Operating Temperature | 0°C to 50°C | ||
| Storage Temperature | -15℃ to 60℃ | ||
| Humidity | 0 to 95% Relative Humidity(Non-condensing) | ||
