Lithium UPS provides a more comprehensive protection because of its longer autonomy time as its greatest benefit and it comes in different form factors to fit your storage space. Plus, Lithium UPS can save your total cost of ownership, including battery replacement and labor service.

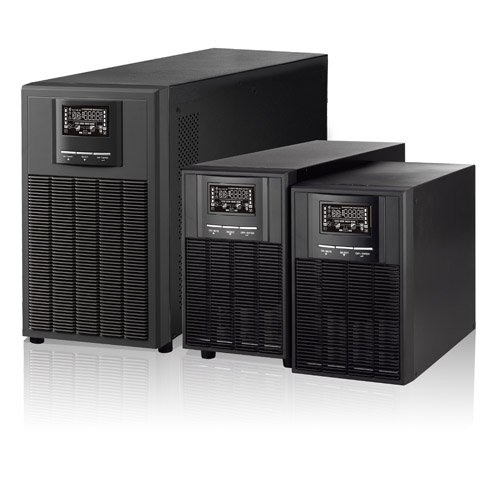

Galleon One LiFePO4 RT & Tower 1KVA-3KVA
LiFePO4 battery UPS
Overview
Main Features
- True double-conversion
- Generator compatible
- Output power factor 0.9
- Fast battery recharge time
- Charging current is selectable through LCD
- Input power factor correction
- More than 8 min full load backup time
- Easy battery replacement design
- Long battery lifecycle 2000
- Built-in protection circuit in battery pack with UL 1973 (MH63914) certifi ed
- UN38.3 for battery transportation
Specifications
| MODEL | Galleon One LiFePO4 1K | Galleon One LiFePO4 1.5K | Galleon One LiFePO4 2K | Galleon One LiFePO4 3K | |
| CAPACITY | 1000 VA / 900 W | 1500 VA / 1350 W | 2000 VA / 1800 W | 3000 VA / 2700 W | |
| PHASE | Single phase with ground | ||||
| INPUT | |||||
| Nominal Voltage | 100/110/115/120 /127 VAC or 200/208/220/230/240 VAC | ||||
| Acceptable Voltage Range | 55-150 VAC ± 3% or 110-300 VAC ± 3% @ 50% load; 80-150 VAC ± 3% or 160-300 VAC ± 3% @ 100% load | ||||
| Frequency Range | 40~70 Hz | ||||
| Power Factor | ≧0.99 @ nominal voltage (100% load) | ||||
| THDi | ≦5% @nominal input voltage | ||||
| OUTPUT | |||||
| Output Voltage | 100*/110/115/120 /127 VAC or 200*/208*/220/230/240 VAC | ||||
| Frequency Range (Batt. Mode) | 60 Hz ± 0.1Hz or 50 Hz ± 0.1Hz | ||||
| Transfer Time | AC to Battery Mode | Zero | |||
| Transfer Time | ECO to Battery Mode | 8ms (Typical) | |||
| Transfer Time | Inverter to Bypass | < 4ms (Typical) | |||
| Waveform (Batt. Mode) | Pure Sine Wave | ||||
| Voltage Regulation (Batt. Mode) | ± 1% | ||||
| Current Crest Ratio | 3:1 | ||||
| Harmonic Distortion | 2% max @ 100% linear load, 5% max @ 100% non-linear load (before low battery alarm) | ||||
| Frequency Range (Synchronized Range) | 57~63 Hz or 47~53 Hz | ||||
| EFFICIENCY | |||||
| Battery Mode | 87% | 89% | 90% | ||
| ECO Mode | ≧96% @ full charged battery | ||||
| AC Mode | 89% @ full charged battery | 90% @ full charged battery | |||
| BATTERY | |||||
| Battery Voltage | 25.6 V | 48 V | 76.8 V | ||
| Charging Current | 1/2/4/6/8A (max.), adjustable through LCD | ||||
| Charging Voltage | 28 VDC ± 1% | 52.5 VDC ± 1% | 84 VDC ± 1% | ||
| Battery Type** | LiFe 247500 | LiFe 485000 | LiFe 722500 | ||
| Battery Lifecycle | > 2000 | ||||
| Single Cell Type | LFP26650P-260 | ||||
| Battery Number** | 1 | 2 | 3 | ||
| Battery Cell Configuration | 8S3P | 15S3P | (15S3P) x 2 | (24S1P) x 3 | |
| Battery VAH(Factory Setting) | 7.5Ah | 5Ah | 10Ah | 7.5Ah | |
| Autonomy Time @ Full load | 9.5 minutes | 8 minutes | 12 minutes | 9.5 minutes | |
| Charging Mode | 2 stage charging management(CC-CV) | ||||
| Typical Recharge Time | 1.5 hours recover to 90% capacity | ||||
| ENVIRONMENT | |||||
| Operating Humidity | 20-95 % RH @ 0- 40°C (non-condensing) | ||||
| Noise Level | Less than 45dB | Less than 45dB@Line mode, Less than 55dB@Battery mode | |||
| PHYSICAL | |||||
| RT Model | Dimension, DXWXH (mm) | 410 x 438 x 88 | 510 x 438 x 88 | 630 x 438 x 88 | |
| RT Model | Net Weight (kgs) | 10.8 | 11.6 | 15.2 | 20.5 |
| Tower Model | Dimension, DXWXH (mm) | 397 x 158 x 220 | 480 x 158 x 220 | 590 x 190 x 318 | |
| Tower Model | Net Weight (kgs) | 9.8 | 10.7 | 15.7 | 21.8 |
| MANAGEMENT | |||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||
| Smart RS-232 / USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and MAC | ||||
| STANDARD | |||||
| EMC/Safety | CE (EMC: EN62040-2 C2) for HV models, FCC (Class A) for LV models, Battery Pack comply to UL1973 | ||||
