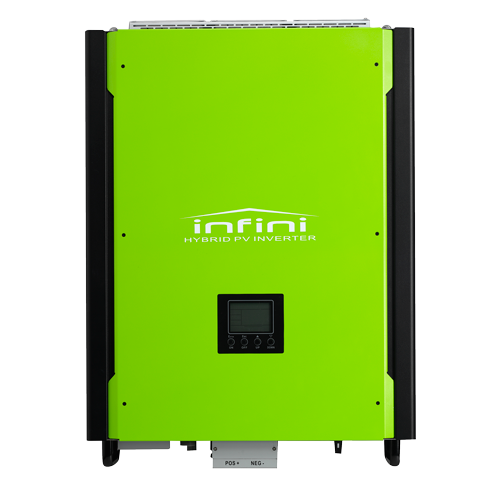

InfiniSolar 10KW/15KW is a hybrid inverter that combines a solar system, AC utility, and battery power source to supply continuous power. It is suitable for remote areas where the cost of utility is too high or emergency usage when the utility is not stable.
Overview
Main Features
- Pure sine wave output
- High performance HMI display with user-friendly LCD operation
- Self-consumption and Feed-in to the grid
- Programmable supply priority for PV, Battery or Grid
- User-adjustable battery charging current suits different types of batteries
- Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
- Built-in timer for various mode of on/off operation
- Multiple communication for USB, RS-232, Modbus and SNMP
- Monitoring software for real-time status display and control
- Parallel operation up to 6 units
Specifications
| MODEL | InfiniSolar 3P 10KW | InfiniSolar 3P 15KW | |
| PHASE | 3-phase in/3-phase out | ||
| Maximum PV Input Power | 14850W | 22500W | |
| Rated Output Power | 10000W | 15000W | |
| Maximum Charging Power | 9600 W | 15000 W | |
| GRID-TIE OPERATION | |||
| PV INPUT (DC) | |||
| Nominal DC Voltage / Maximum DC Voltage | 720 VDC / 900 VDC | ||
| Start-up Voltage / Initial Feeding Voltage | 320 VDC / 350 VDC | ||
| MPPT Voltage Range | 350 VDC~800 VDC | ||
| Number of MPP Trackers/Max. Input Current | 2/2x18.6A | 2 / A: 37.65A; B: 18.6A | |
| GRID OUTPUT (AC) | |||
| Nominal Output Voltage | 230 VAC (P-N)/400 VAC (P-P) | ||
| Output Voltage Range | 184-265 VAC* per phase | ||
| Nominal Output Current | 14.5A per phase | 21.7A per phase | |
| Power Factor | > 0.99 | ||
| EFFICIENCY | |||
| Maximum Conversion Efficiency (DC/AC) | 96% | ||
| European Efficiency@Vnominal | 95% | ||
| OFF-GRID OPERATION | |||
| AC INPUT | |||
| AC Start-up Voltage / Auto Restart Voltage | 120-140 VAC per phase / 180 VAC per phase | ||
| Acceptable Voltage Range | 170-280 VAC per phase | ||
| Maximum AC Input Current | 40A | ||
| PV INPUT (DC) | |||
| Maximum DC Voltage | 900 VDC | ||
| MPPT Voltage Range | 400 VDC~800 VDC | 350 VDC ~ 850 VDC | |
| Number of MPP Trackers/Max. Input Current | 2/2x18.6A | 2 / A: 37.65A; B: 18.6A | |
| BATTERY Mode Output (AC) | |||
| Nominal Output Voltage | 230 VAC (P-N)/400 VAC (P-P) | ||
| Output Waveform | Pure Sine Wave | ||
| Efficiency (DC to AC) | 91% | ||
| HYBRID OPERATION | |||
| PV INPUT (DC) | |||
| Nominal DC Voltage / Maximum DC Voltage | 720 VDC / 900 VDC | ||
| Start-up Voltage / Initial Feeding Voltage | 320 VDC / 350 VDC | ||
| MPPT Voltage Range | 400 VDC~800 VDC | 350 VDC ~ 850 VDC | |
| Number of MPP Trackers/Max. Input Current | 2/2x18.6A | 2 / A: 37.65A; B: 18.6A | |
| GRID OUTPUT (AC) | |||
| Nominal Output Current | 14.5A per phase | ||
| Nominal Output Voltage | 230 VAC (P-N)/400 VAC (P-P) | ||
| Output Voltage Range | 184-264.5 VAC* per phase | 184-264.5 VAC per phase | |
| AC INPUT | |||
| AC Start-up Voltage / Auto Restart Voltage | 120-140 VAC per phase / 180 VAC per phase | ||
| Acceptable Voltage Range | 170-280 VAC per phase | ||
| Maximum AC Input Current | 40A | ||
| BATTERY MODE OUTPUT (AC) | |||
| Nominal Output Voltage | 230 VAC (P-N)/400 VAC(P-P) | ||
| Efficiency (DC to AC) | 91% | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 48 VDC | ||
| Maximum Charging Current | Default 60A, 10A-200A (Adjustable) | Default 60A, 5A-300A (Adjustable) | |
| GENERAL | |||
| PHYSICAL | |||
| Dimension, D X W X H (mm) | 167.5 x 500 x 622 | 219 x 650 x 820 | |
| Net Weight (kgs) | 40 | 62 | |
| INTERFACE | |||
| Communication Port | USB, RS-232 | RS-232, USB and Dry contact | |
| Intelligent Slot | Optional SNMP, Modbus and AS-400 cards available | ||
| ENVIRONMENT | |||
| Operating Humidity | 0~90% RH (Non-condensing) | ||
| Operating Temperature | -10 to 55 °C | ||
| Altitude | 0~1000 m | ||
