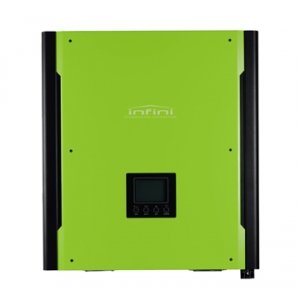

InfiniSolar 2KW/3KW/5KW is a hybrid inverter which combines solar system, AC utility, and battery power source to supply continuous power. It is suitable for remote areas where the cost of utility is too high or emergency usage when utility is not stable.
Overview
Main Features
- Pure sine wave output
- High performance HMI display with user-friendly LCD operation
- Self-consumption and Feed-in to the grid
- Programmable supply priority for PV, Battery or Grid
- User-adjustable battery charging current suits different types of batteries
- Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
- Built-in timer for various mode of on/off operation
- Multiple communication for USB, RS-232, Modbus and SNMP
- Monitoring software for real-time status display and control
- Parallel operation up to 6 units for 5KW
Specifications
| MODEL | InfiniSolar 2KW | InfiniSolar Plus 3KW | InfiniSolar Plus II 3KW | InfiniSolar Plus 5KW | |
| PHASE | 1-phase in/1-phase out | ||||
| Maximum PV Input Power | 2250W | 4500W | 10000W | ||
| Rated Output Power | 2000W | 3000W | 5000W | ||
| Maximum Charging Power | 1200 W | 2880 W | 4800 W | ||
| GRID-TIE OPERATION | |||||
| PV INPUT (DC) | |||||
| Nominal DC Voltage / Maximum DC Voltage | 300 VDC / 350 VDC | 360 VDC / 500 VDC | 720 VDC / 900 VDC | ||
| Start-up Voltage / Initial Feeding Voltage | 80 VDC / 120 VDC | 116 VDC / 150 VDC | 225 VDC / 250 VDC | ||
| MPPT Voltage Range | 120 VDC~320 VDC | 250 VDC~450 VDC | 250 VDC~850 VDC | ||
| Number of MPP Trackers/Max. Input Current | 1/1x15A | 1/1x18A | 2/2x10A | ||
| GRID OUTPUT (AC) | |||||
| Nominal Output Voltage | 101/110/120/127 VAC | 208/220/230/240 VAC | |||
| Output Voltage Range | 88-127 VAC* | 184-265 VAC* | |||
| Nominal Output Current | 18A | 13A | 21A | ||
| Power Factor | > 0.99 | ||||
| EFFICIENCY | |||||
| Maximum Conversion Efficiency (DC/AC) | 95% | 96% | |||
| European Efficiency@Vnominal | 94% | 95% | |||
| OFF-GRID OPERATION | |||||
| AC INPUT | |||||
| AC Start-up Voltage / Auto Restart Voltage | 60-70 VAC / 85 VAC | 120-140 VAC / 180 VAC | |||
| Acceptable Voltage Range | 80-130 VAC | 170-280 VAC | |||
| Maximum AC Input Current | 30A | 40A | |||
| PV INPUT (DC) | |||||
| Maximum DC Voltage | 350 VDC | 500 VDC | 900 VDC | ||
| MPPT Voltage Range | 150 VDC~320 VDC | 250 VDC~450 VDC | 250 VDC~850 VDC | ||
| Number of MPP Trackers/Max. Input Current | 1/1x15A | 1/1x18A | 2/2x10A | ||
| BATTERY Mode Output (AC) | |||||
| Nominal Output Voltage | 101/110/120/127 VAC | 202/208/220/230/240 VAC | 208/220/230/240 VAC | 202/208/220/230/240 VAC | |
| Output Waveform | Pure Sine Wave | ||||
| Efficiency (DC to AC) | 90% | 93% | |||
| HYBRID OPERATION | |||||
| PV INPUT (DC) | |||||
| Nominal DC Voltage / Maximum DC Voltage | 300 VDC / 350 VDC | 360 VDC / 500 VDC | 720 VDC / 900 VDC | ||
| Start-up Voltage / Initial Feeding Voltage | 80 VDC / 120 VDC | 116 VDC / 150 VDC | 225 VDC / 250 VDC | ||
| MPPT Voltage Range | 150 VDC~320 VDC | 250 VDC~450 VDC | 250 VDC~850 VDC | ||
| Number of MPP Trackers/Max. Input Current | 1/1x15A | 1/1x18A | 2/2x10A | ||
| GRID OUTPUT (AC) | |||||
| Nominal Output Current | 18A | 13A | 21A | ||
| Nominal Output Voltage | 101/110/120/127 VAC | 202/208/220/230/240 VAC | |||
| Output Voltage Range | 88-127 VAC* | 184-264.5 VAC* | |||
| AC INPUT | |||||
| AC Start-up Voltage / Auto Restart Voltage | 60-70 VAC / 85 VAC | 120-140 VAC / 180 VAC | |||
| Acceptable Voltage Range | 80-130 VAC | 170-280 VAC | |||
| Maximum AC Input Current | 30A | 40A | |||
| BATTERY MODE OUTPUT (AC) | |||||
| Nominal Output Voltage | 101/110/120/127 VAC | 202/208/220/230/240 VAC | |||
| Efficiency (DC to AC) | 90% | 93% | |||
| BATTERY & CHARGER | |||||
| Nominal DC Voltage | 48 VDC | ||||
| Maximum Charging Current | Default 25A, 5A-25A (Adjustable) | Default 25A, 5A-60A (Adjustable) | Default 60A, 5A-100A (Adjustable) | ||
| GENERAL | |||||
| PHYSICAL | |||||
| Dimension, D X W X H (mm) | 107 x 438 x 480 | 204.2 x 460x 600 | |||
| Net Weight (kgs) | 15.5 | 29 | |||
| INTERFACE | |||||
| Communication Port | USB, RS-232 | ||||
| Intelligent Slot | Optional SNMP, Modbus and AS-400 cards available | ||||
| ENVIRONMENT | |||||
| Operating Humidity | 0~90% RH (Non-condensing) | ||||
| Operating Temperature | 0~40°C | -10 to 55 °C | |||
| Altitude | 0~1000 m | ||||
