The rated output power is at 5.5KW with 2 enhanced MPP trackers and maximum AC/solar charging current can reach 60A. It features programmable operation modes based on applications, self-consumption first, feed-in to the grid or automatic hybrid operation. The flexible and intelligent hybrid inverter can utilize solar power, AC utility and stored battery power without interrupting the power supply.

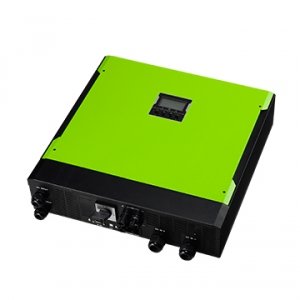

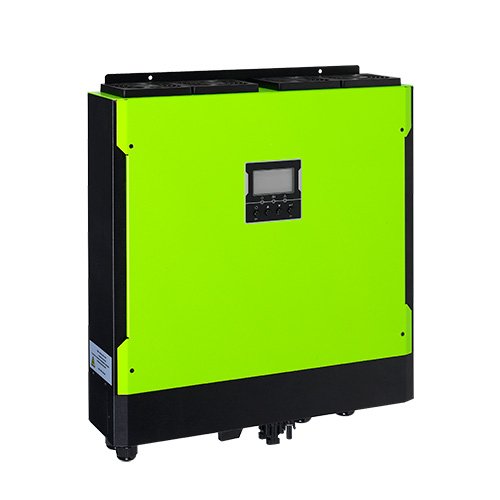

InfiniSolar E 5.5KW
2 enhanced MPPT trackers
Overview
Main Features
- Pure Sinewave output
- Self-consumption and feed-in to the grid
- Programmable supply priority for PV, battery or grid
- User-adjustable battery charging current suits different types of batteries
- Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
- Built-in timer for various mode of on/off operation
- Built-in 2 strings of MPP trackers
- Monitoring software for real-time status display and control
- Enhance AC/Solar charger to 60A
Specifications
| MODEL | InfiniSolar E 5.5KW | |
| Maximum PV Input Power | 6500 W | |
| Rated Output Power | 5500 W | |
| Maximum Charging Power | 2880 W | |
| GRID-TIE OPERATION | ||
| PV INPUT (DC) | ||
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC | |
| Start-up Voltage / Initial Feeding Voltage | 116 VDC / 150 VDC | |
| MPPT Voltage Range | 120 VDC~450 VDC | |
| Number of MPP Trackers/Max. Input Current | 2/2x13A | |
| GRID OUTPUT (AC) | ||
| Nominal Output Voltage | 202/208/220/230/240 VAC | |
| Output Voltage Range | 184-264.5 VAC* | |
| Maximum Output Current | 23.9A* | |
| Power Factor | > 0.99 | |
| EFFICIENCY | ||
| Maximum Conversion Efficiency (DC/AC) | 96% | |
| European Efficiency@Vnominal | 95% | |
| OFF-GRID OPERATION | ||
| AC INPUT | ||
| AC Start-up Voltage / Auto Restart Voltage | 120-140 VAC / 180 VAC | |
| Acceptable Voltage Range | 170-280 VAC | |
| Maximum AC Input Current | 40 A | |
| PV INPUT (DC) | ||
| Maximum DC Voltage | 500 VDC | |
| MPPT Voltage Range | 120 VDC~450 VDC | |
| Number of MPP Trackers/Max. Input Current | 2/2x13A | |
| BATTERY MODE OUTPUT (AC) | ||
| Nominal Output Voltage | 202/208/220/230/240 VAC | |
| Output Waveform | Pure Sine Wave | |
| Efficiency (DC to AC) | 93% | |
| HYBRID OPERATION | ||
| PV INPUT (DC) | ||
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC | |
| Start-up Voltage / Initial Feeding Voltage | 116 VDC / 150 VDC | |
| MPPT Voltage Range | 120 VDC~450 VDC | |
| Number of MPP Trackers/Max. Input Current | 2/2x13A | |
| GRID OUTPUT (AC) | ||
| Maximum Output Current | 23.9A* | |
| Nominal Output Voltage | 202/208/220/230/240 VAC | |
| Output Voltage Range | 184-264.5 VAC* | |
| AC INPUT | ||
| AC Start-up Voltage / Auto Restart Voltage | 120-140 VAC / 180 VAC | |
| Acceptable Voltage Range | 170-280 VAC | |
| Maximum AC Input Current | 40A | |
| BATTERY MODE OUTPUT (AC) | ||
| Nominal Output Voltage | 202/208/220/230/240 VAC | |
| Efficiency (DC to AC) | 93% | |
| BATTERY & CHARGER | ||
| Nominal DC Voltage | 48 VDC | |
| Maximum Charging Current | 100 A | |
| GENERAL | ||
| PHYSICAL | ||
| Dimension, D X W X H (mm) | 110 x 450 x 445 | |
| Net Weight (kgs) | 16 | |
| INTERFACE | ||
| Communication Port | USB, RS-232 | |
| Intelligent Slot | Optional SNMP, Modbus and AS-400 cards | |
| ENVIRONMENT | ||
| Operating Humidity | 0~90% RH (Non-condensing) | |
| Operating Temperature | 0~40°C | |
| Altitude | 0~1000 m | |
