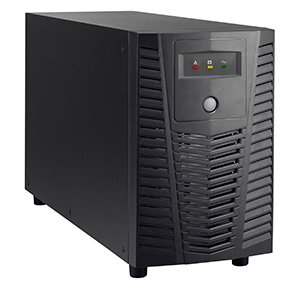

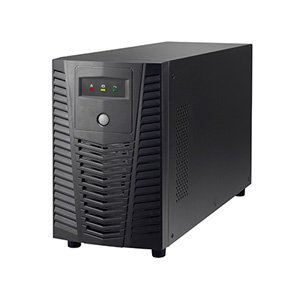

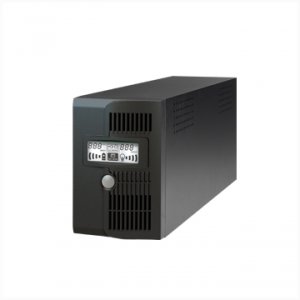

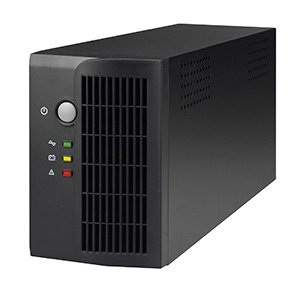

Library 600VA-2KVA

Backup power during long-term outage

Categories: Line Interactive UPS, UPS

As a long-run UPS, Library series is able to connect with external batteries and provide continuous backup power during long-term outage. Equipped with double boost and single buck, it allows to work indefinitely through long brownouts and overvoltages instead of draining the battery. It helps to save battery during power outages.

Overview

Main Features

600VA/1KVA/2KVA simulated sine wave output
Boost and buck AVR for voltage stabilization
Selectable charging current
Auto restart while AC is recovering
Off-mode charging
Cold start function
Built-in super charger supporting long backup with external battery
Generator compatible (option)

Specifications

MODEL	Library 600	Library 1000	Library 2000
CAPACITY	600 VA / 360 W	1000 VA / 600 W	2000 VA / 1200 W
INPUT
Voltage	220/230 VAC
Voltage Range	140-300 VAC
Frequency Range	50 Hz
OUTPUT
AC Voltage Regulation (Batt. Mode)	220/230 VAC ± 10%
Frequency Range (Batt. Mode)	50 Hz ± 1 Hz
Transfer Time	Typical 4-8 ms
Waveform (Batt. Mode)	Simulated Sine Wave
BATTERY
Battery Voltage	12 VDC		24 VDC
Floating Charge Voltage	13.7 VDC ± 2%		27.4 VDC ± 2%
Maximum Charging Current	2.5A/6A/10A (Adjustable from manufacturer)	5A/10A/15A/20A (Adjustable from manufacturer)
PROTECTION
Full Protection	Overload, discharge, and overcharge protection

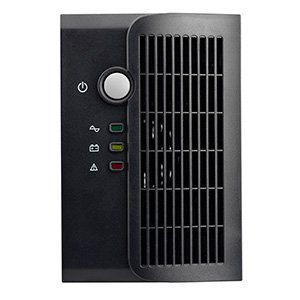

INDICATORS
AC Mode	Green lighting
Battery Mode	Yellow flashing
Fault	Red lighting
ALARM
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Battery Replacement	Sounding every 2 seconds
Fault	Continuously sounding
PHYSICAL
Dimension, D X W X H (mm)	358.5 x 96.8 x 146.5	395 x 145 x 220
Net Weight (kgs)	5.8	9.0	13.55
OPERATING ENVIRONMENT
Operating Humidity	0~90% RH @ 0- 40°C (non-condensing)
Noise Level	Less than 40dB
