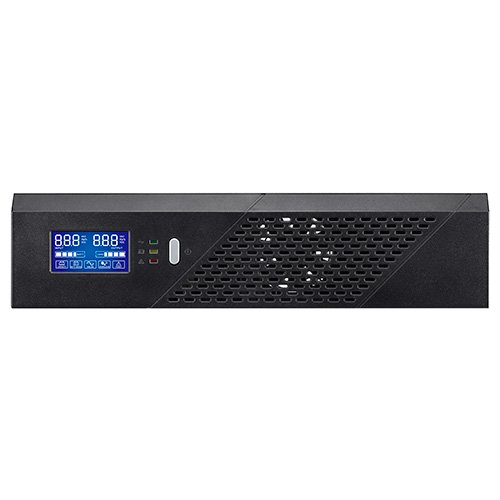

Lobo is a compact inverter designed to power your home appliances and precious 3C electronics. The AVR function stabilizes output voltage in power fluctuation area and its wide input voltage window (90VAC ~ 280VAC) ensures power continuity for connected devices. Thus, it is a perfect choice for home owners or small office users in the unstable power area.
Overview
Main Features
- Simulated sine wave inverter
- Built-in 50A PWM solar charger
- Wide input voltage range
- 10A or 20A standard AC charging current
- LCD display for comprehensive information
- Overload, short circuit and reverse polarity protection
Specifications
| MODEL | LOBO 1.2K | LOBO 2.4K | |
| CAPACITY | 1200 VA / 720 W | 2400VA/ 1440W | |
| INPUT | |||
| Voltage | 230 VAC | ||
| Acceptable Voltage Range | 90-280 VAC | ||
| Frequency Range | 60/50 Hz (Auto sensing) | ||
| AC CHARGER | |||
| Constant Current Charge Voltage | 14.3VDC ± 2% | 28.6VDC ± 2% | |
| Floating Charge Voltage | 13.7VDC ± 2% | 27.4VDC ± 2% | |
| Maximum Charge Current | 10A or 20A | ||
| OUTPUT | |||
| Frequency Range (Batt. Mode) | 60 Hz or 50 Hz ±1 Hz | ||
| Transfer Time | 20ms (Typical) | ||
| Waveform (Batt. Mode) | Simulated Sine Wave | ||
| Output voltage Regulation (Batt. Mode) | 230 VAC ±10% | ||
| BATTERY & AC CHARGER | |||
| Battery Voltage | 12 VDC | 24 VDC | |
| Acceptable Battery Type | Rechargeable lead-acid and deep discharge battery | ||
| Acceptable Input Range for Charger | 90~280 VAC | ||
| DC Start Voltage | >11VDC | >22VDC | |
| PROTECTION | |||
| Full Protection | Overload, short circuit and reverse polarity protection | ||
| ENVIRONMENT | |||
| Operating Temperature | 0°C to 40°C | ||
| Humidity | 0 to 90% Relative Humidity (Non-condensing) | ||
| Storage Temperature | 15°C to 50°C | ||
| PHYSICAL | |||
| Dimension, D x W x H (mm) | 300 x 360 x 88 | ||
| Net Weight (kgs) | 6.3 | 7.6 | |
| SOLAR CHARGER | |||
| Operating Voltage Range | 15~18 VDC | 30~32 VDC | |
| Maximum Solar Charge Current | 50A | ||
| Maximum PV Array Open Circuit Voltage | 40 VDC | 60 VDC | |
