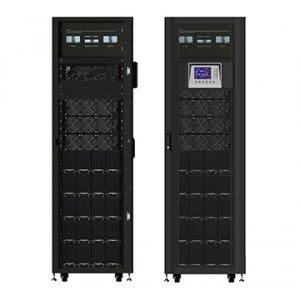

Offering high efficiency and overload capability, +Power is a truly modular UPS system which can easily scales in 30kW increments up to 210kW. Modular design is applied in power module, STS module and battery module. It will simplify maintenance and replacement with low MTTR.
Overview
Main Features
- High efficiency online double conversion technology
- High scalability
- Unity output power factor
- Modular design lowers MTTR
- Highly reliable operation with redundant power supply in STS
- User-adjustable charging current
- Ease of installation and maintenance
- Flexible battery configuration adapts different applications
- High overload capability
- Graphic 5.7” LCD design for easy management
- N+1 or N+X parallel redundancy for power guarantee
- Optional 10" touch LCD panel
Specifications
| MODEL | +Power 30U-90HV | +Power 42U-120HV | +Power 30U-80-20KHV | +Power 30U-120HV | +Power 30U-120-20KHV | +Power 30U-180HV | |
| CABINET CAPACITY | 90KW | 120KW | 120KW or 80KW | 180KW or 120KW | |||
| PHASE | 3-phase in/3-phase out | ||||||
| Maximum Battery Set No. | 3 | 5 | - | ||||
| Battery Type | Built-in Battery | External Battery | |||||
| Maximum Power Module No. | 3 | 4 | 6 | ||||
| One Power Module Capacity | 30 KVA / 30 KW | 30 KVA / 30 KW or 20 KVA / 20KW | |||||
| INPUT | |||||||
| Voltage Range | 305~478 VAC at 70%-100% load; 208~478VAC for <70% load | ||||||
| Nominal Voltage | 3 x 380VAC/400VAC/415VAC (3Ph+N) | ||||||
| Frequency Range | 40Hz ~70Hz | ||||||
| Nominal Frequency | 50/60 Hz (Auto sensing) | ||||||
| Power Factor | > 0.99 at 100% load, >0.98 at 50% load | ||||||
| Harmonic Distortion (THDi) | < 3% @ 100% load | ||||||
| OUTPUT | |||||||
| Nominal Frequency | 50/60Hz | ||||||
| Overload Capability | 1 hour for 110%, 10 mins for 125%, 1 min for 150% and 200ms for >150% | ||||||
| Voltage Regulation (Steady state) | ≦ ±1% Typical (balanced load); ≦ ±2% Typical (unbalanced load) | ||||||
| Nominal Voltage | 3 x 380VAC/400VAC/415VAC (3Ph+N) | ||||||
| Efficiency | Up to 94.5% | ||||||
| Harmonic Distortion | ≦ 2% THD (Linear Load); ≦ 4% THD (Non-linear Load) | ||||||
| Frequency Range (Synchronized range) | 46Hz~54Hz or 56Hz~64Hz | ||||||
| BATTERY & CHARGER | |||||||
| Floating Charge Voltage | 2.25V/Cell | ||||||
| Boost Charging Voltage | 2.35V/Cell | ||||||
| Maximum Charging Current | 8A | 8A for 30KW power module; 6A for 20KW power module | |||||
| Maximum Voltage | +/- 240V (12V x 40 Pcs) | ||||||
| Nominal Voltage | +/- 216V (12V x 36 Pcs) | ||||||
| Temperature Compensation | Yes | ||||||
| Minimum Voltage | +/- 192V (12V x 32 Pcs) | ||||||
| ENVIRONMENT | |||||||
| Altitude | <1000m for Nominal power | ||||||
| IP Class | IP 20 | ||||||
| Operating Temperature | 0~40℃ | ||||||
| Operating Humidity | 0~95% non-condensing | ||||||
| PHYSICAL | |||||||
| Cabinet Dimension (D x W x H) mm | 1100 x 600 x 1475 | 1100 x 600 x 2010 | 1100 x 600 x 1475 | ||||
| Net Weight (kgs) | 675 | 932 | 335 or 333 | 437.5 or 434.5 | |||
| MANAGEMENT | |||||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||||
| Smart RS-232 / USB | Supports Windows 2000/2003/XP/Vista/2008/7, Linux and MAC | ||||||
| STANDARDS | |||||||
| Safety | IEC/EN 60950-1; IEC/EN 62040-1 | ||||||
| Model | +Power 42U-200-20KHV | +Power 42U-210HV | +Power 42U-300HV | |
| CABINET CAPACITY | 200KW | 210KW | 300KW | |
| PHASE | 3-phase in/3-phase out | |||
| Maximum Battery Set No. | - | |||
| Battery Type | External Battery | |||
| Maximum Power Module No. | 10 | 8 | 10 | |
| One Power Module Capacity | 20KW | 30 KVA / 30 KW | ||
| INPUT | ||||
| Voltage Range | 305~478 VAC at 70%-100% load; 208~478VAC for <70% load | |||
| Nominal Voltage | 3 x 380VAC/400VAC/415VAC (3Ph+N) | |||
| Frequency Range | 40Hz ~70Hz | |||
| Nominal Frequency | 50/60 Hz (Auto sensing) | |||
| Power Factor | > 0.99 at 100% load, >0.98 at 50% load | |||
| Harmonic Distortion (THDi) | < 3% @ 100% load | |||
| OUTPUT | ||||
| Nominal Frequency | 50/60Hz | |||
| Overload Capability | 1 hour for 110%, 10 mins for 125%, 1 min for 150% and 200ms for >150% | |||
| Voltage Regulation (Steady state) | ≦ ±1% Typical (balanced load); ≦ ±2% Typical (unbalanced load) | |||
| Nominal Voltage | 3 x 380VAC/400VAC/415VAC (3Ph+N) | |||
| Efficiency | Up to 94.5% | |||
| Harmonic Distortion | ≦ 2% THD (Linear Load); ≦ 4% THD (Non-linear Load) | |||
| Frequency Range (Synchronized range) | 46Hz~54Hz or 56Hz~64Hz | |||
| BATTERY & CHARGER | ||||
| Floating Charge Voltage | 2.25V/Cell | |||
| Boost Charging Voltage | 2.35V/Cell | |||
| Maximum Charging Current | 6A | 8A | ||
| Maximum Voltage | +/- 240V (12V x 40 Pcs) | |||
| Nominal Voltage | +/- 216V (12V x 36 Pcs) | |||
| Temperature Compensation | Yes | |||
| Minimum Voltage | +/- 192V (12V x 32 Pcs) | |||
| ENVIRONMENT | ||||
| Altitude | <1000m for Nominal power | |||
| IP Class | IP 20 | |||
| Operating Temperature | 0~40℃ | |||
| Operating Humidity | 0~95% non-condensing | |||
| PHYSICAL | ||||
| Cabinet Dimension (D x W x H) mm | 1100 x 600 x 2010 | |||
| Net Weight (kgs) | 611 | 549 | 620 | |
| MANAGEMENT | ||||
| Optional SNMP | Power management from SNMP manager and web browser | |||
| Smart RS-232 / USB | Supports Windows 2000/2003/XP/Vista/2008/7, Linux and MAC | |||
| STANDARDS | ||||
| Safety | IEC/EN 60950-1; IEC/EN 62040-1 | |||
