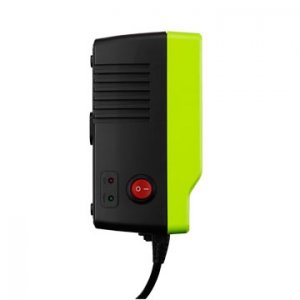

With its fashionable and flexible cabinet, Scudo can be installed on a desk or wall without causing an unsightly or unprofessional image, and will perfectly utilize a limited working environment. With colorful panel selections, customers can choose from a variety of appropriate colors based on their need or aesthetic preference. This series offers one-step boost and one-step buck stabilizer to continuously supply a clean power source to its connected equipment. To offer more flexibility to our OEM customers, this series can be easily customized with a 7-outlet surge protector. Please contact our sales representatives to find out how Scudo series can benefit your business.
Overview
Main Features
- Compact size with robust design
- Stylist design with colorful panels for your consideration
- Accepts wide input voltage range (184-263 VAC)
- Provides stable output voltage through boost and buck stabilizer
- Provides local receptacles for easy of the use
- Provides modem/phone line surge protection
- Provides overload, short circuit and over-temperature protection
- Built-in thermal sensor provides over-temperature protection and recover while abnormal situation is eliminated
Specifications
| MODEL | Scudo 600 | Scudo 1000 | Scudo 1200 | |
| CAPACITY | 600 VA / 360 W | 1000 VA / 600 W | 1200 VA / 720 W | |
| INPUT | ||||
| Voltage | 220 or 230 VAC | |||
| Voltage Range | 180-264 VAC or 190-275 VAC | |||
| Frequency Range | 50 Hz | |||
| OUTPUT | ||||
| Voltage | 220 or 230 VAC | |||
| AVR | ± 8% | |||
