Wi-Fi module can enable wireless communication between off-grid inverters and monitoring platforms. Users have complete and remote monitoring and controlling experience for inverters when combining WiFi module with WatchPower APP, available for both iOS and Android-based device. All data loggers and parameters are saved in iCloud.

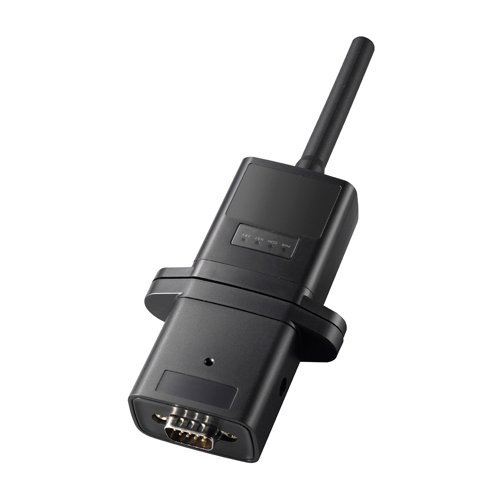

Wifi Module
Remote monitoring and controlling experience for inverters
Overview
Main Features
- Real-time dynamic graphs of inverter data
- Cloud storage for history data and event log
- Remote monitoring and control of multiple inverters via mobile APP (iOS and Android)
- Parameter settings available (output setting, output priority setting, AC input range, battery setting and etc.)
Specifications
| MODEL | Wi-Fi Module | |
| Net Weight (g) | 120 | |
| Wifi Communication Protocol | 802.11 b/g/n | |
| Hardware Encryption | WEP, WPA/WPA2 | |
| Wifi Operation Frequency | 2.4G | |
| Wifi Wireless Gain | 2.5dBi | |
| Wifi Communication Distance | 100 meters (open environment) | |
| Maximum transmit rate of Wifi | 72Mbps | |
| Maximum Transmit Power of Wifi | 18.5dbm (70mW) | |
| Software WatchDog | Yes | |
| Local Communication Interface | RS232 | |
| Network Layer Communication Protocol | Modbus-TCP | |
| Working Mode | AP/STA | |
| Parameter Setting Way | Mobile APP | |
| External Power Input | 5V-12V | |
| Power Consumption | 2 watt (max.) | |
| Operating Temperature | -20°C ~ 75°C | |
| Operating Humidity | 0 ~ 95% | |
| Storage Temperature | -30°C ~ 80°C | |
| Dimension, D X W X H (mm) | 28 x 46 x 172 | |
